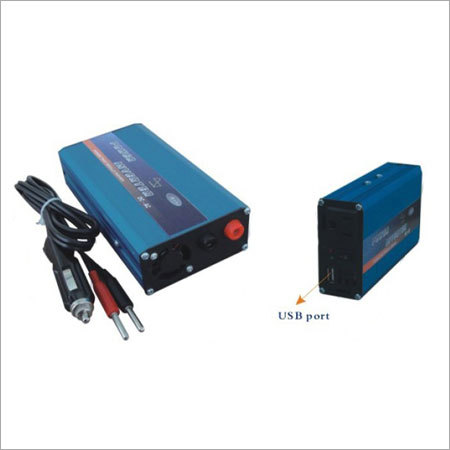

Pure Sine Wave Inverter

Pure Sine Wave Inverter
Pure Sine Wave Inverter
Product Code : 02
Product Description

Our company is a prominent manufacturer of 150W 180W Pure Sine Inverter. We manufacture a wide assortment with the help of cutting edge machinery and meticulously tested raw materials at par with defined quality standards. The offered inverters are widely appreciated for numerous attributes like efficient performance, long service life, less maintenance and compact design. In order to attain maximum client satisfaction, we properly inspect our 150W 180W Pure Sine Inverter on stringent parameters.

  • Type:DC/AC Inverters
  • Phase:Single
  • Power Source:Solar Power
  • Output Power:101 - 200W
  • Inverter Output Wave Form: Pure Sine Wave
  • LED indicators showing power and fault
  • DC/AC Isolated
  • Over-voltage shut down
  • Low-voltage alarm
  • Low-voltage shut down
  • Over-temperature shut down
  • Output short-circuit protection
  • DC reverse polarity protection by fuse
  • No Load Current Draw: <0.5A
  • Efficiency: >90%
  • Working Temperature: 0 ~ 40° C
  • Working Humidity: 20%~80%
  • Storage Temperature: -30° C ~ 70° C
  • Product size: 155*80*58mm
  • Net Weight: 0.6Kgs
  • Carton measurement: 400X320X260mm, 24pcs/ctn
  • -Cooling: Thermal fan
  • Technical Data:
  • Input Voltage: 12V DC
  • Output Voltage: 100V~120V AC / 220V~240V AC
  • Output Voltage Regulation: 5%~10%
  • Continuous Power: 180W
  • Surge Power: 360W
  • Low Voltage Alarm: 11V+-0.5V DC
  • Low Voltage Shutdown: 10.5V+-0.5V DC
  • High Voltage Shutdown: 15.5V+-0.5V DC
  • Over-temperature Shutdown: 65° C +- 5° C
  • Frequency: 50Hz or 60Hz
