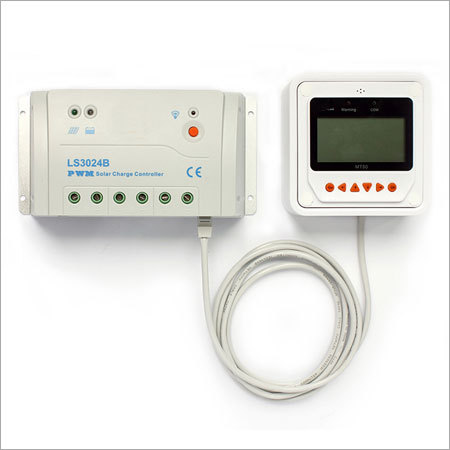

Solar Controller

Solar Controller
Solar Controller
Product Code : 01
Product Description

Our company is a highly innovative manufacturer of Solar Controller, which is fabricated by talented and adept professionals. It is developed in accordance with pre defined quality standards, which enables us to meet specific demand of clients within promised duration. The rated voltage of this equipment is 12V/24V and the charge type is PWM. The Offered Solar Controller is admired for compact design, superb performance, long service life and cost effectiveness.

Application:

  • Collector Controller, Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station, Voltage Controller
  • Rated Voltage:12V/24V
  • Power Source:Solar Power
  • Charge Type:PWM
  • Charge Current:10A/20A/30A
  • Certification:CE RoHS

Features:

  • Three system voltage configuration : 12V, 24V or 12V/24V auto work
  • High efficiency PWM charging with temperature compensation
  • Open standard Modbus communication protocol
  • Software update function
  • 3 LEDs shows PV charging, battery and load status
  • External temperature sensor interface
  • RS-485 bus communication

More powerful function via MT50 or PC

  • Programmable parameters
  • LVD  or SOC load disconnect function
  • Energy statistics function
  • Diversified load control modes : Manual, Light ON/OFF, Light ON+ Timer, Time Control
  • Battery type selection: Gel, sealed, flooded and User type
  • Real-time monitor

Electronic Protections:

  • PV array short circuit
  • Over discharging
  • Over charging
  • Load overload
  • Load short circuit
  • PV reverse polarity
  • Battery reverse polarity

Electrical parameters

LS1024B

LS2024B

LS3024B

Nominal System Voltage

12 / 24VDC

Rated Battery Current

10A

20A

30A

Maximum PV input voltage

50V

Grounding

Common positive

Self-consumption

8.4mA(12V),7.8mA(24V)

Temp. compensation

-3mV/ºC/2V(25ºC ref)

Equalize charging voltage

Sealed: 14.6V,  Flooded: 14.8V,  User-defined: 9~17V

Boost charging voltage

Gel: 14.2V,  Sealed: 14.6V,  Flooded: 14.8V, User-defined: 9~17V

Float charging voltage

Gel /Sealed /Flooded: 13.8V,  User-defined: 9~17V

Low voltage reconnect voltage

Gel /Sealed /Flooded: 12.6V,  User-defined: 9~17V

Low voltage disconnect voltage

Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V

Working temp.

-35ºC~+55ºC

Humidity

≤95% (NC)

Enclosure

IP30

Dimension

138.6x69.3x37mm

159.6x81.4x47.8mm

200.6x101.3x57mm

Terminal

4mm 2

10mm 2

10mm 2

Net weight

0.13kg

0.3kg

0.5kg
